The Difference Between a Boat and a Bass Platform
An inflatable fishing boat becomes a serious bass fishing platform only when it is rigged for the specific demands of weekend tournaments and recreational bass fishing. This is not about simply unfolding the boat and attaching a trolling motor. The search intent behind "how to rig an inflatable fishing boat for weekend bass fishing" is about achieving a functional, fishable setup that can handle repeated shallow-water runs, standing casts, and the awkward angles of landing a fish while maintaining stability.
For the commercial buyer—whether an importer stocking a private-label fishing series, a rental fleet operator serving highland reservoirs, or a resort replacing its aging johnboat fleet—this guide focuses on the technical decisions that separate a viable fishing craft from a floating pool toy. At least 70% of this article addresses the direct question of how to configure a specific inflatable product for a specific, demanding fishing application.
Use-Case Requirements: The Bass Fishing Profile
Before discussing hardware, define the operating envelope. Weekend bass fishing typically involves:
Shallow water operation: Targeting bass often means working shorelines, submerged timber, and weed edges in depths less than 10 feet.
Standing anglers: At least one, often two, fishermen casting and landing fish while standing.
Electronic equipment: A fishfinder/graph unit with transducer, plus a 12V battery system.
Motorized propulsion: Primary reliance on a transom-mounted electric trolling motor (55-80 lbs thrust) with a secondary option for a small outboard (2.5-6 hp) in larger bodies of water.
Gear and livewell: Rod holders, tackle trays, a cooler or livewell, and an anchor system.
These requirements translate into specific commercial specifications: floor rigidity, weight distribution, and attachment point layout. The buyer should verify against the final datasheet, but typical commercial targets for a weekend bass fishing inflatable include a minimum floor length of 8 feet, a beam of at least 54 inches, and a distributed payload capacity of 600-850 lbs. A common mistake is prioritizing packed volume over on-water performance. For a weekend warrior, a 30-minute setup time is acceptable if the boat provides a dry, stable casting platform.
Product Architecture and Material Choices
Most serious bass fishing inflatables use a hybrid construction: a drop-stitch floor for rigidity and high-pressure inflatable tubes (typically PVC or Hypalon/CSM) for buoyancy. The floor is the critical component. A drop-stitch floor, when inflated to 8-12 PSI (a typical commercial range for this application), creates a flat, near-solid surface that allows an angler to stand and shift weight without the floor buckling. This is non-negotiable for a bass fishing platform. Lower-pressure floors, common in recreational rafts, will cause instability and fatigue.
The tube material affects longevity and maintenance. PVC is common and cost-effective, but it is more susceptible to UV degradation and requires careful cleaning. Hypalon/CSM is more expensive but offers superior UV and abrasion resistance, which is critical for boats frequently dragged over gravel or concrete boat ramps. For a rental fleet, Hypalon's easier repair properties often justify the higher upfront cost.
Transom Engineering
The transom is the boat's structural heart for motor mounting. It must be reinforced with a rigid composite board (often marine-grade plywood or aluminum) capable of handling the torque of a trolling motor and the vibration of a small gas outboard. A weak transom will flex, causing poor steering response and premature failure at the attachment points. Look for commercial designs that specify a transom thickness of at least 1.5 inches and a mounting plate height that matches the shaft length of your intended motor (typically 15 inches for a short shaft).
Attachment Points and Layout
Rigging for bass fishing is about accessory placement. The boat should feature a minimum of 4-6 heavy-duty D-rings or mounting pads positioned for:
A bow-mounted trolling motor (requires a flat, reinforced mounting area).
A transom-mounted trolling motor or outboard.
Seat mounts (often two interchangeable pedestal bases).
Rod holders (typically flush-mount or clamp-on).
An anchor trolley system (a line running from bow to stern along the side).
The location of these D-rings determines the boat's balance. For example, a battery (weighing 40-60 lbs) should be placed centrally or slightly aft to counterbalance a heavy bow-mount motor. Poor weight distribution results in porpoising (the bow bouncing up and down) and reduced motor efficiency.
| Rigging Component | Commercial Target / Typical Range | Why It Matters for Bass Fishing | Buyer Check |
|---|---|---|---|
| Drop-Stitch Floor | 8-12 PSI working pressure | Provides rigid casting platform for standing anglers; reduces flex and fatigue. | Verify pressure gauge accuracy. Check for floor deflection under weight (commonly specified as<2 inches at 200 lbs). |
| Transom | 1.5 inch thick composite, 15" shaft height typical | Prevents flex and vibration from motor torque, ensures steering precision. | Confirm transom plate is reinforced with aluminum or marine wood. Check for four bolts on the motor mount. |
| Battery Wiring | 6 AWG or thicker copper, marine-grade heat shrink | Minimizes voltage drop to trolling motor; prevents overheating and connection failure. | Inspect connections for corrosion. Verify quick-connect plugs (e.g., Anderson) are rated for 50A continuous. |
| Transducer Mount | Dedicated transom bracket with cable routing | Ensures consistent sonar readings below waterline, free from turbulence. | Test transducer angle at rest and at low speed. Check cable for pinch points. |
| Payload Distribution | 600-850 lbs typical, 15-20% capacity buffer | Maintains planing ability and motor efficiency; prevents porpoising. | Calculate total weight (boat + motor + battery + gear + anglers). Ensure it is within 85% of rated capacity. |
Electrical and Propulsion System Integration
The electrical system is often the most frustrating part of a weekend rig. The core requirement is a reliable 12V deep-cycle battery (Group 24 or 27) to power the trolling motor and fishfinder. The rigging must prioritize secure battery housing, waterproof connections, and proper gauge wiring.

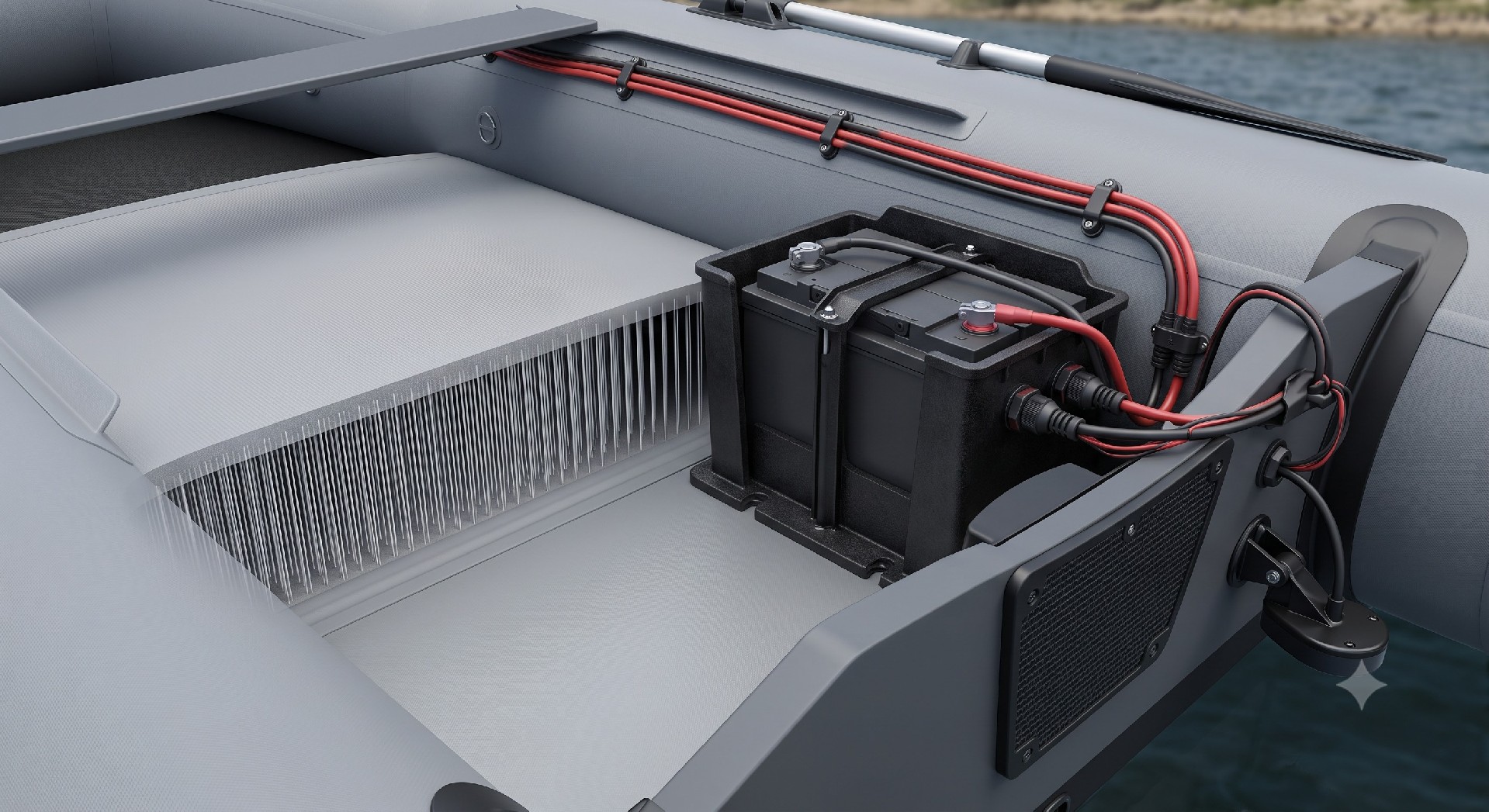

Battery Placement and Wiring
A battery box with a strap is insufficient on a bouncing inflatable. Commercial setups often use a dedicated battery tray mounted to a reinforced drop-stitch floor section or a wooden plate that distributes the weight across the floor. Use 6 AWG or thicker copper wire for a 55-lb thrust motor to prevent voltage drop. All connections should be soldered and sealed with marine-grade heat shrink, not just twisted and taped. The battery should be charged with a dedicated onboard charger designed for marine use, or removed for charging after each trip. For rental fleets, consider quick-connect plugs (like Anderson connectors) to speed up battery swaps and reduce terminal damage from frequent hookups.
Transducer Mounting
A fishfinder is useless if the transducer reads air. The transducer, which sends and receives sonar signals, must be mounted so it sits below the waterline when the boat is planing or at rest. The most common solution is a dedicated transducer bracket mounted to the transom, positioned to the side of the motor to avoid turbulence. Alternatively, some rigs use a suction-cup mount on the hull for temporary use, though this is less reliable at speed. Ensure the cable is routed cleanly and secured with cable ties, avoiding pinch points where the tube folds.
Deployment Workflow and Contingency Plan
The weekend rigging process should be as repeatable as a pre-flight checklist. A typical deployment workflow for a two-person crew involves:
Unpack and layout: Spread the boat on a clean, debris-free surface.
Floor inflation: Inflate the drop-stitch floor to its rated pressure (commonly specified as 8-10 PSI). This is the most critical step; use a pressure gauge, not just feel.
Tube inflation: Inflate the side chambers to their rated pressure (often 2.5-3.5 PSI, supplier-dependent).
Motor mount: Attach the trolling motor to the transom, ensuring the shaft is at the correct angle.
Battery placement: Install the battery in its tray and connect the motor leads.
Accessory setup: Install seats, rod holders, and the fishfinder.
Final check: Verify all valves are closed, all connections are secure, and all gear is stowed for balance.
A contingency plan is essential for wind or sudden boat failure. Always carry a spare paddle or a small manual bilge pump. For rental operations, provide clear instructions on how to locate and use the repair kit, including patches and adhesive.
Rigging for Success: The Decision Checklist
Whether you are an individual angler or a commercial buyer, the final rigging decision comes down to compatibility between the boat's architecture and the gear you intend to mount. An inflatable boat is not a blank slate; its flexibility limits how you can mount heavy or awkward gear without causing stress ripples in the floor or side tubes.
Buyer's Decision Sequence
Before committing to a specific model or configuration, answer these three questions based on your dominant use case:
Do the boat's attachment points match my intended trolling motor and seat layout? If the factory D-rings don't align with a bow-mount motor, you will need to install an aftermarket mounting plate, which adds a point of potential failure.
Is the floor stiff enough for two standing anglers casting in chop? This is not just about PSI; it's about the drop-stitch material and the floor's connection to the tubes. A high-pressure floor in a boat with a deep V-hull will behave very differently than one in a flat-bottomed design.
What is the total system weight (boat, motor, battery, gear, fuel, anglers) and is it within the boat's payload capacity? Being at 95% of the rated capacity will severely compromise performance and safety. Aim for a buffer of 15-20%.
Recommendation by Buyer Type
Individual Owner: Prioritize a lightweight package with a simple electrical system. A boat with a pre-wired transducer mount and a built-in battery tray will save you significant setup time. Look for a model that packs down small enough to fit in an SUV, but does not compromise on floor rigidity.
Rental Fleet Operator: Choose a Hypalon/CSM boat with a rugged, replaceable transom. Standardize your accessory mounting (e.g., a specific motor bracket and battery box) across the fleet to simplify maintenance and spare parts stocking. Invest in high-quality, quick-disconnect wiring to reduce user errors and terminal corrosion.
Resort Buyer: Focus on durability and ease of use for guests. A boat with a color-coded inflation system and clear pressure markings is beneficial. Consider adding a small, pre-installed console to house the battery and fishfinder, making the boat more approachable for inexperienced anglers.
Ultimately, the best rigged inflatable fishing boat is one that is specific to the boat's design, not a collection of generic parts. The integrity of the floor and transom, the quality of the electrical connections, and the alignment of the weight distribution are the three pillars that will determine whether your weekend bass fishing trip is a success or a frustrating struggle against a poorly set up craft.
