Introduction: Why B2B Buyers Are Shifting to Heavy Duty PVC Inflatable Boats
For commercial fleet managers, resort operators, and rescue coordinators, heavy duty PVC inflatable boat procurement has moved beyond simple price comparison. With rising demand for durable, portable watercraft that withstand high-utilization cycles, buyers now prioritize verified material science, regulatory compliance (ISO 6185, REACH), and total cost of ownership (TCO). This guide delivers data-driven specifications, seam engineering benchmarks, and ROI models tailored to wholesale and B2B sourcing.
Fabric Technology Deep Dive: PVC vs. Hypalon in Commercial Grades
Reinforced PVC Composition and Denier Standards
Commercial-grade heavy duty PVC inflatable boat construction utilizes high-tenacity polyester scrim embedded between PVC layers. Industry benchmarks require minimum 1100 denier fabric with 0.9mm to 1.2mm thickness for load-bearing floors and hulls. Unlike recreational grades, B2B variants incorporate UV-stabilized additives and anti-microbial layers per REACH EC 1907/2006. Leading manufacturers test puncture resistance up to 250 N/mm (ISO 13938-2).

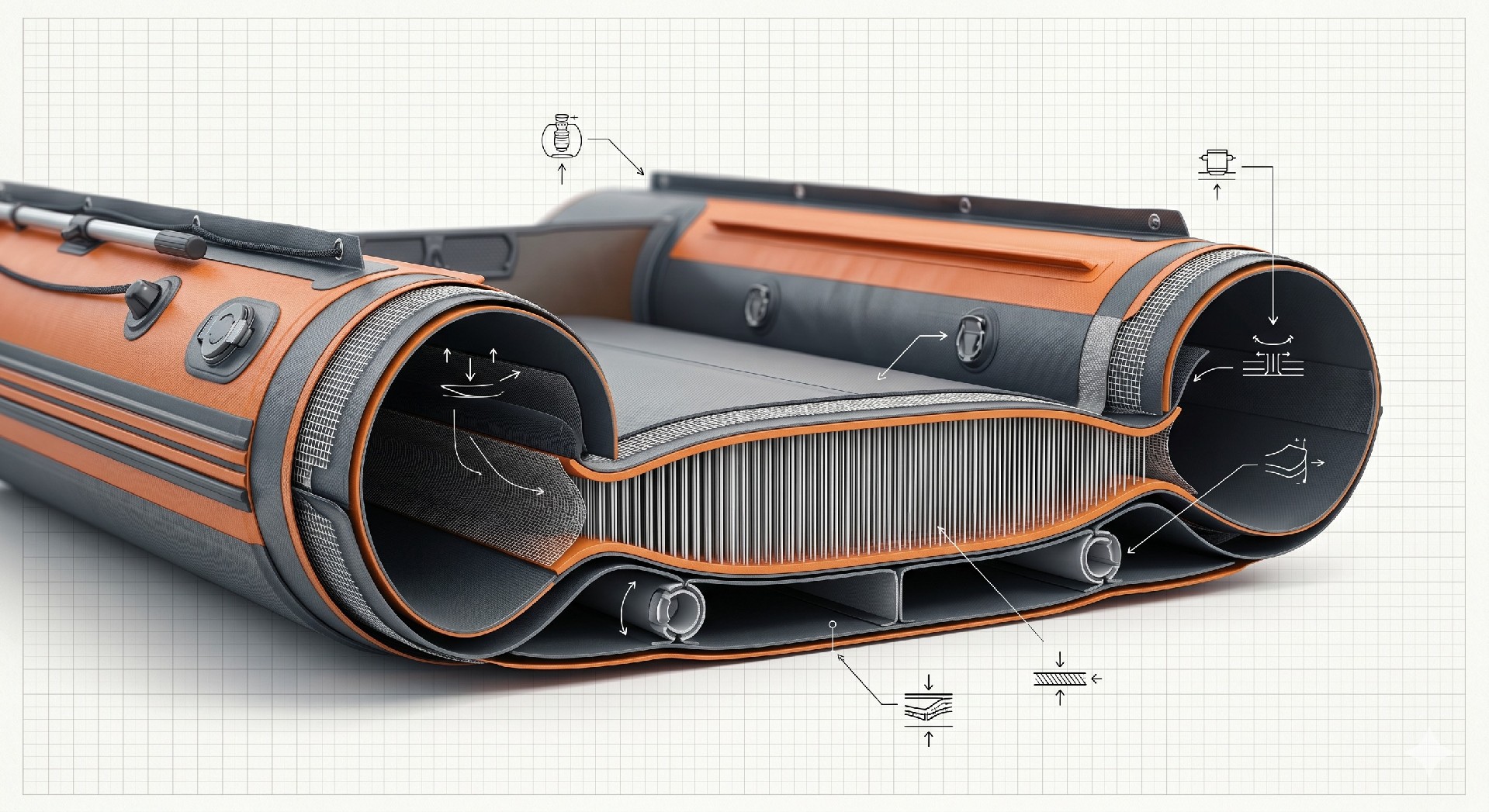

Drop-Stitch Core Physics for Rigidity
High-pressure drop-stitch technology enables heavy duty PVC inflatable boat floors to achieve 8-12 PSI (0.55-0.83 bar) – over 4x standard inflatable chambers. This yields deflection rates under 5% at 400 kg payload. For commercial whitewater or rescue use, multi-layer laminated drop-stitch (2x 1100D scrim) ensures burst pressure >20 PSI.
Seam Engineering: Heat-Welded vs. Glued Reliability
B2B-grade heavy duty PVC inflatable boat manufacturers exclusively employ high-frequency (HF) heat welding or hot air welding with overlap seams of 40-60mm. Weld shear strength exceeds 80 N/50mm (ISO 1421). Glued seams, common in economy products, show 40% lower longevity under UV and saltwater exposure. CE-certified models require 100% weld inspection via dielectric testing.
Technical Specifications Matrix
Below are critical parameters for evaluating heavy duty PVC inflatable boat commercial suitability. Always verify test reports from ISO 17025-accredited labs.
| Key Parameter | Technical Specification (B2B Grade) |
|---|---|
| Material Composition | 1100D-2000D polyester scrim / 0.9-1.2mm PVC (UV/REACH compliant) |
| Maximum Payload | 400-1200 kg (varies with length: 3.2m to 6.5m) |
| Drop-Stitch Floor PSI | 8-12 PSI (0.55-0.83 bar) – Burst test >20 PSI |
| Seam Method | HF or Hot Air Welded, overlap 40-60mm, shear strength >80 N/50mm |
| Inflation Time (4.2m) | 6-8 min with 150L/min pump (chambers + floor) |
| Commercial Lifespan | 8-12 years / 2,000+ operating hours |
| Certifications | CE (2013/53/EU), ISO 6185-1, REACH, EN71-3 |
| Valve Type | Leafield C7 or Halkey-Roberts (0.5 PSI loss/72hrs) |
Commercial ROI: Total Cost of Ownership Analysis
Lifecycle vs. Hypalon Alternatives
While Hypalon (CSM) offers extended UV resistance, modern heavy duty PVC inflatable boat with MEK/Toluene-free coatings achieves 8-12 years of commercial service (2,000+ operating hours) at 30-40% lower initial acquisition cost. Replacement parts (valves, patches) cost $15-45 vs. $80-150 for Hypalon. Annual maintenance includes only pH-neutral cleaning and seam conditioner application every 200 cycles.
Inflation/Deflation Efficiency
Fleet turnaround metrics: A 4.2m heavy duty PVC inflatable boat inflates to 3.5 PSI (chambers) + 10 PSI (floor) in 6-8 minutes using a 150L/min electric pump (e.g., 12V 30A). High-pressure valves (Leafield C7 or Halkey-Roberts) maintain 0.5 PSI loss over 72 hours – critical for multi-day expeditions.
[IMAGE_2]
Regulatory Compliance Masterclass: CE, ISO 6185, and EN71
For legal operation in EU/UK markets, heavy duty PVC inflatable boat must carry CE marking under Recreational Craft Directive 2013/53/EU or ISO 6185-1 to -4 (depending on boat category). Key pass/fail criteria include:
Buoyancy reserve: >25% above max payload (ISO 6185-1:2018)
Valve torque resistance: ≥5 Nm without leakage
Flammability: Pass ISO 1495 (self-extinguishing within 2s)
REACH SVHC: No phthalates (DEHP, BBP, DBP) above 0.1%
Request batch-specific test certificates – generic declarations are insufficient for B2B risk mitigation.
Conclusion: Strategic Sourcing Action Plan
When procuring a heavy duty PVC inflatable boat for rentals, rescue, or resort fleets, prioritize 1100D+ PVC with HF-welded seams, ISO 6185 certification, and validated drop-stitch PSI ratings. Calculate TCO over 5 years including maintenance and deflation storage (dry, 15-25°C, out of sunlight). Insist on 2-5 year commercial warranty covering seam delamination and valve leaks – a strong indicator of manufacturing quality.
